PTS-600 and PTS-600F

in the ?

Features and Benefits

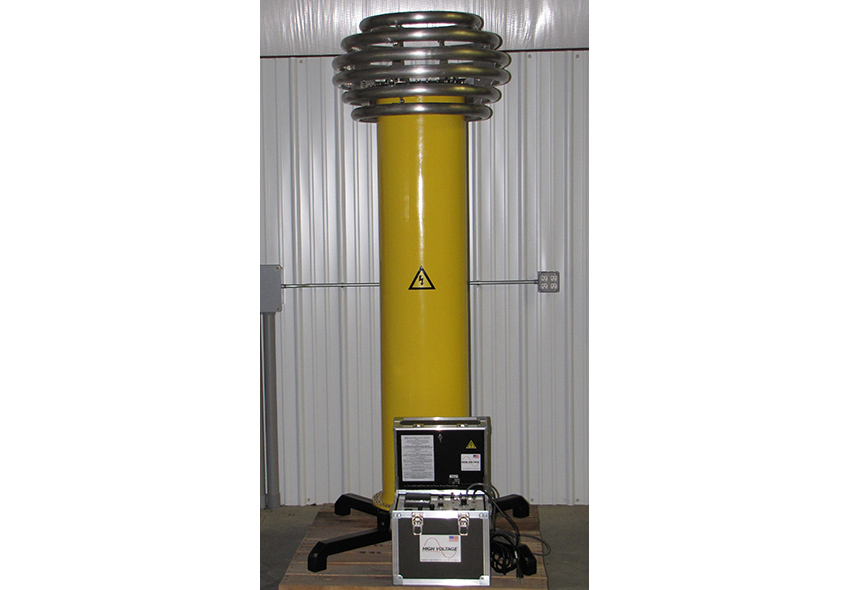

The PTS-600 and PTS-600F are CE marked DC Hipots designed as a two-piece system with a small, portable controller and a single piece high voltage section housed in a fiberglass cylinder with a spinning output.

Like all HVI products, the PTS-600(F) is designed to be rugged and reliable, equipped with all the features needed for portable maintenance testing of new or service aged electrical apparatus and cables.


  • Two range voltmeter and five range current meter
  • MΩ readings at any output voltage (w/analog meters)
  • Insulated return guard circuit to bypass stray leakage currents
  • Rugged case (field) with cushion grip handles and storage for leads
  • Internal discharge resistors to assist external bleed resistors
  • External safety interlock provision
  • Automatic transit protected meters rated 100 uA for durability
  • Benchtop or field controller available, analog or digital metering


Input: PTS-600 – 120Vac, 50/60Hz, 30A
PTS-600 – 230Vac, 50/60Hz, 15A
Output: 0 – 600 kV DC @ 3 mA with field controller or @ 5 mA with benchtop controller
Polarity/Ripple: Negative output, positive ground
Ripple 2% – 3% depending on model
Duty: Continuous, capacitive charging
Voltmeter: 3.5″, scaled 0-300/600 kV DC ±2% F.S.
Current Meter: 3.5″, scaled 0-1.0 μA DC, ±2% F.S. with multipliers of x 1, x 10, x 100, x 1 k, x 10 k
Guard/ground load return
Megohmmeter: 100 – 1 MΩ w/x.1, x1, x10, x100, x1k ranges, w/analog meters
Size & Weight:
(W x D x H)
Controls: 21 x 15.5 x 15 in., 70 lb.
535 x 395 x 382 mm, 32 kg
Tank: 36 in. base, 15 in. dia. cylinder x 89 in. h, 580 lb.
914 mm base, 381 mm dia. cylinder, 1105 mm h, 263 kg
